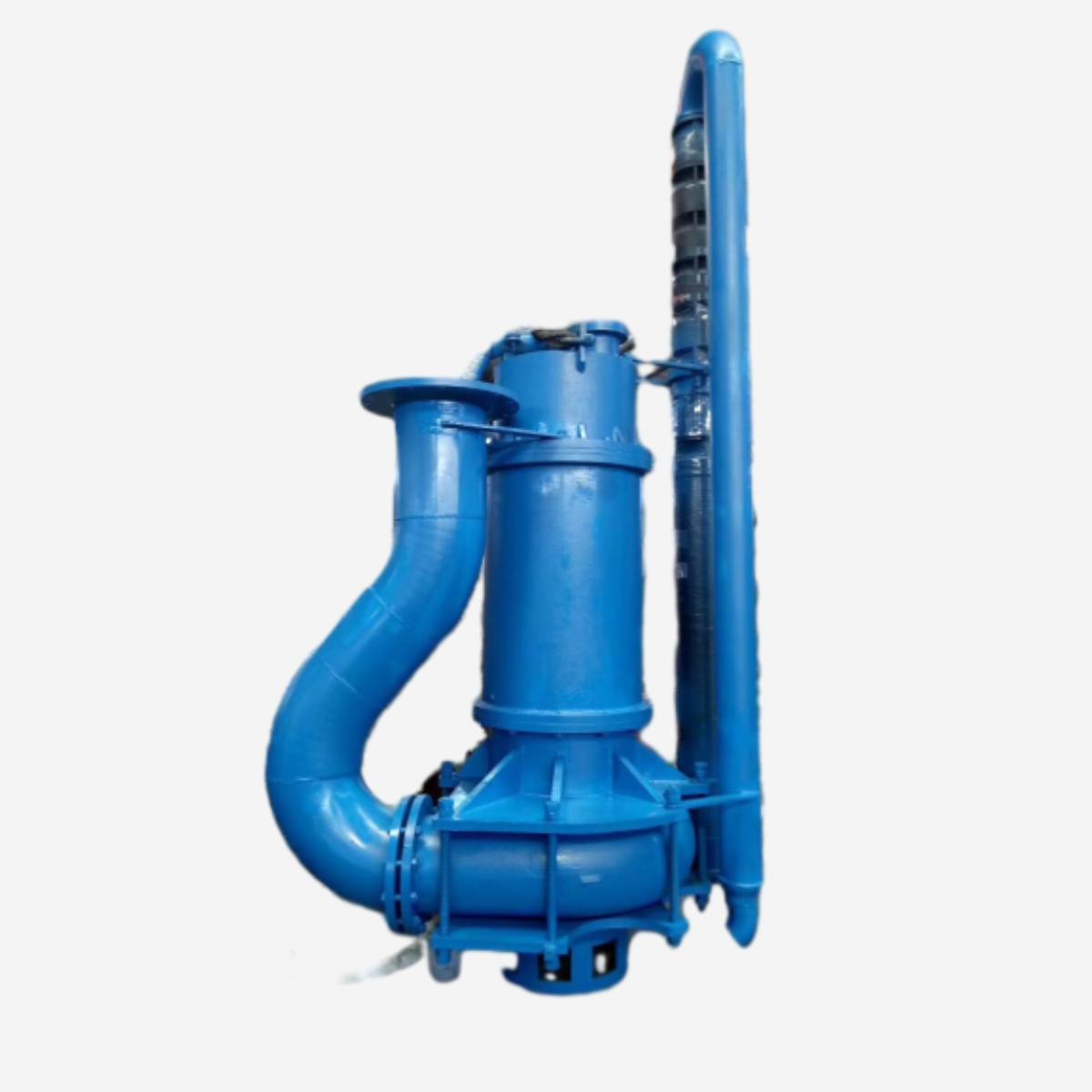

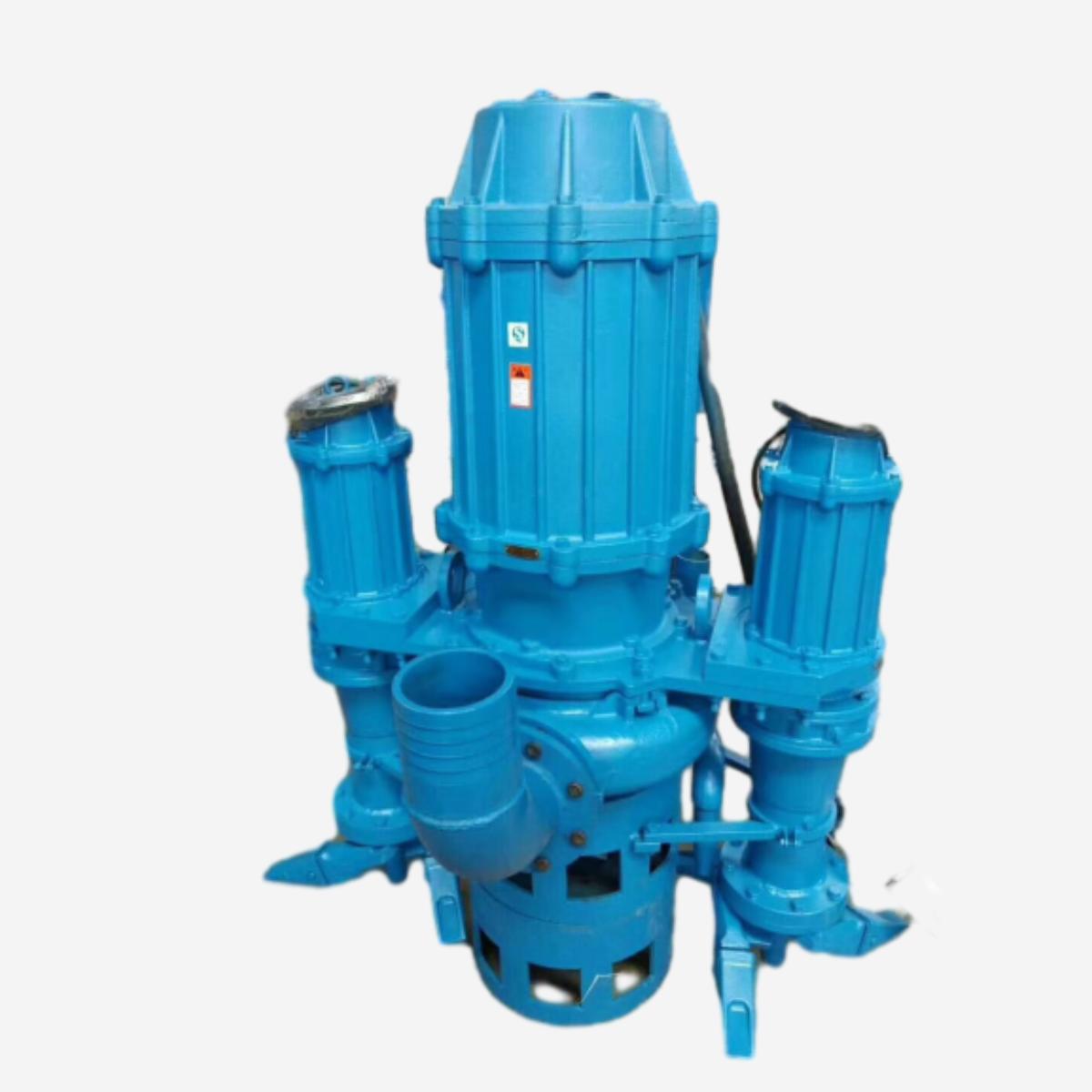

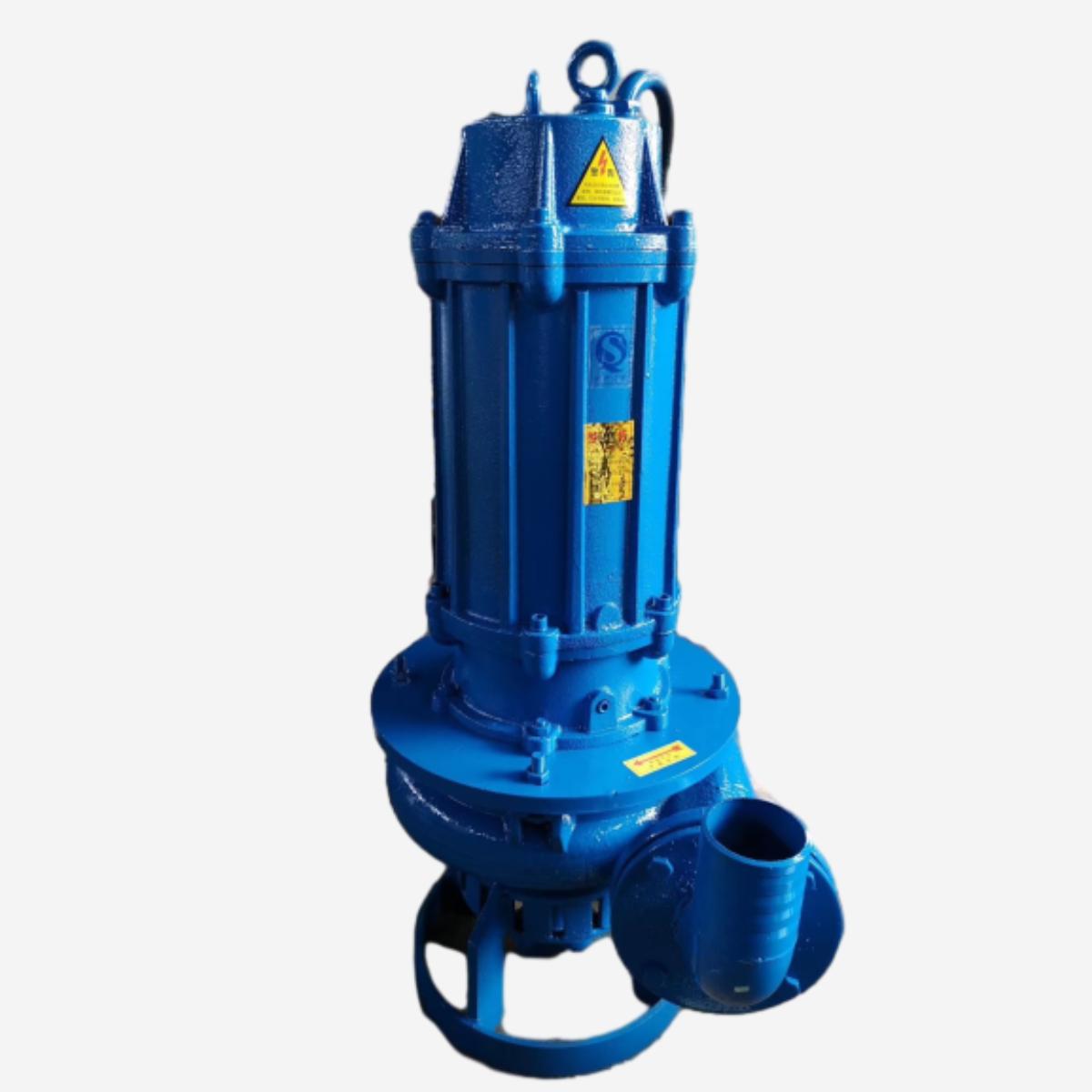

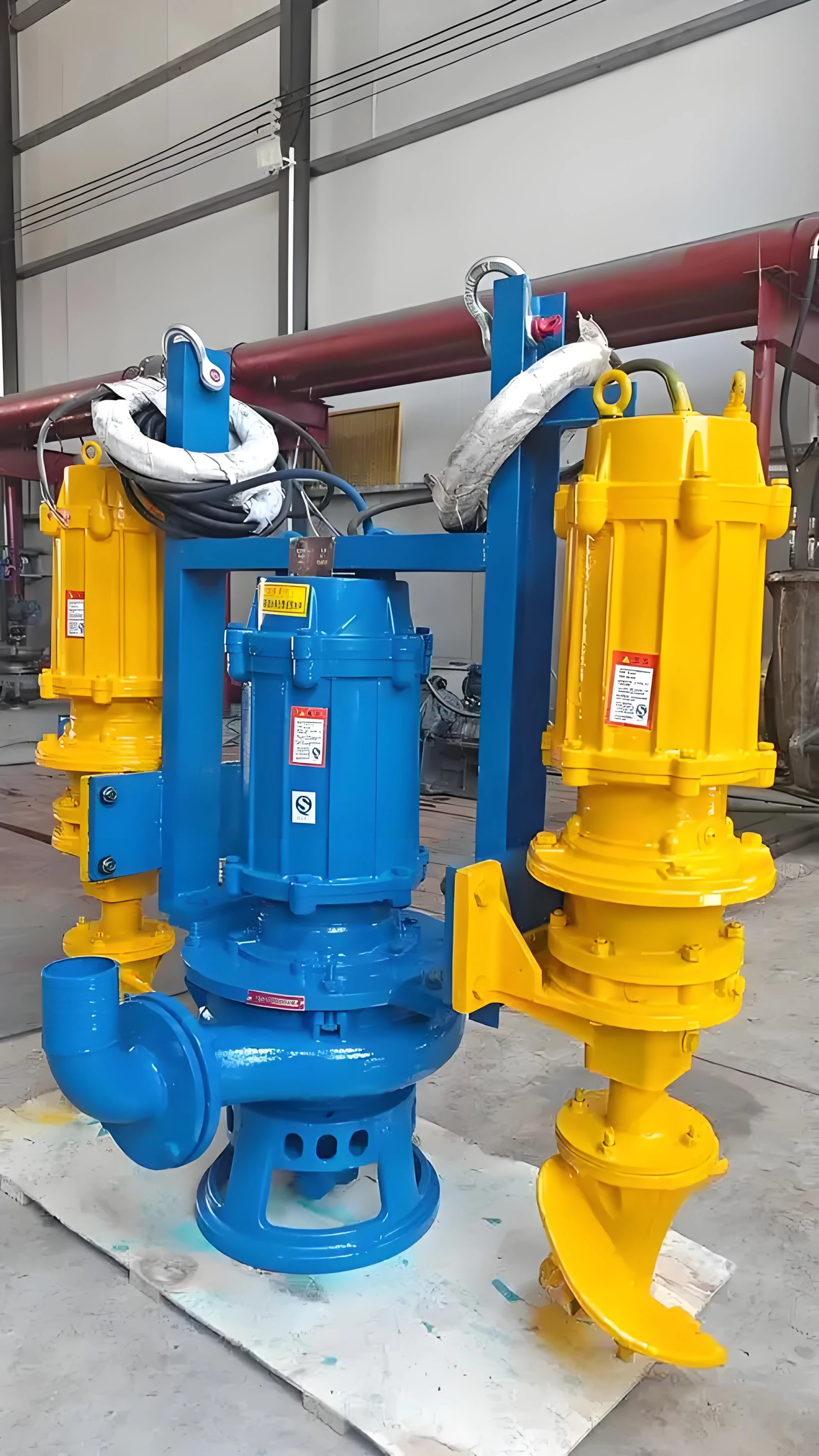

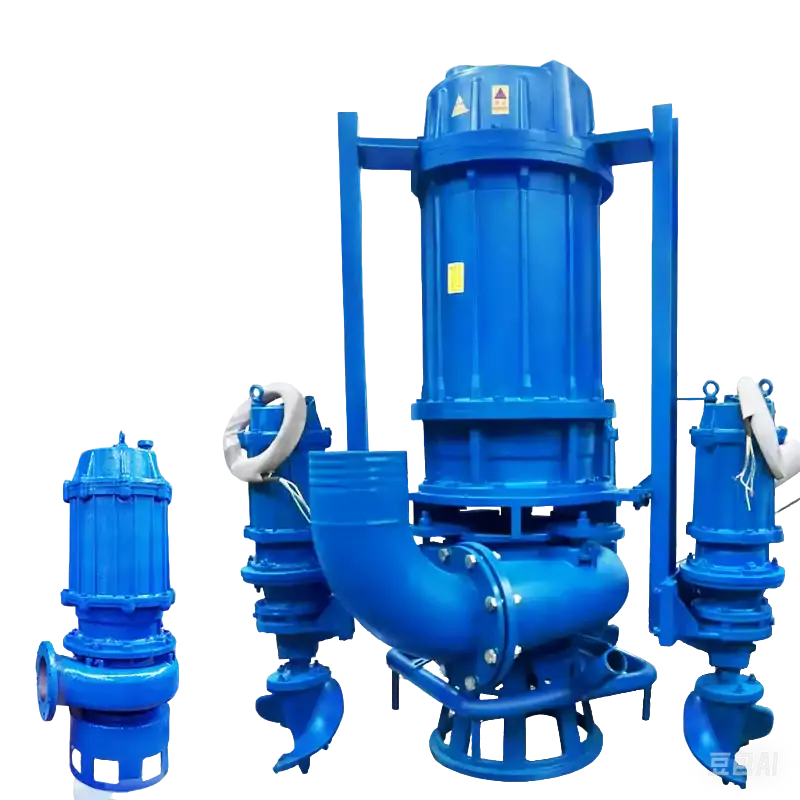

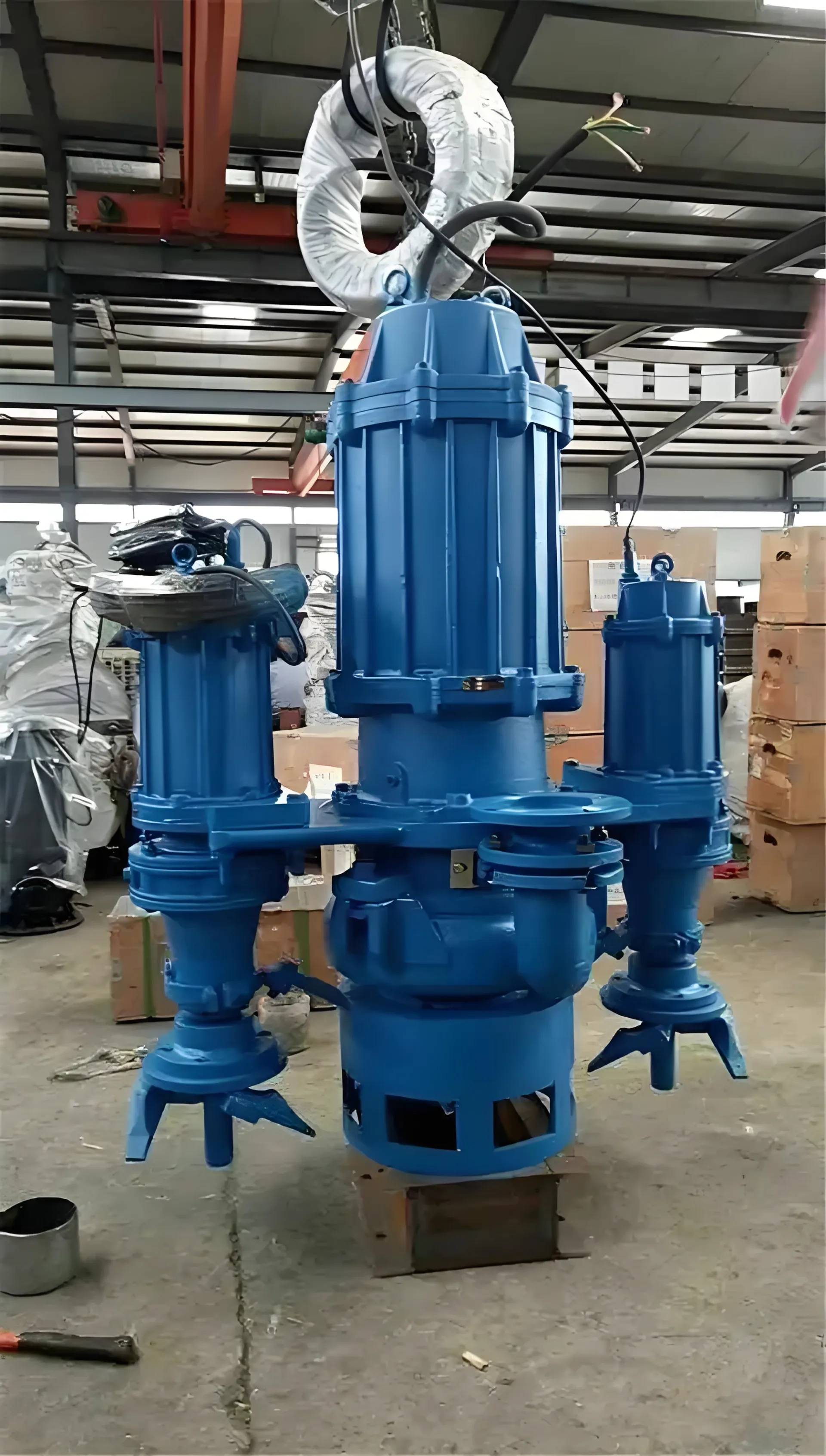

Submersible Sludge Pump

Capacity：5~2000m3/h
Head：15~95m，
Max.pass solid:96mm.
1.Power supply for the 50Hz, 380V three-phase AC power supply.
2.The maximum temperature of the medium shall not be higher than 40 ℃, the media does not contain flammable and explosive gas.
3.The maximum weight of solid particles in the media: 45% of the ash, while sand, slag, pulp is 60%.
4.Unit maximum diving depth is generally not more than 20 meters, after a special modification up to 60 meters, the minimum diving depth of not less than 1 meter.

5.Unit in the medium to work as vertical is well, running for continuous operation.

Including but not limited to the following：
1、River, small river, lake, sea, reservoir pumping sand.
2、River, lake, reservoir, port dredging sediment.
3、Pumping sand beneficiation: pumping sand election iron, pumping sand gold, sand selection rare solid.
4、Sewage treatment plant sedimentation tank cleaning.
5、Municipal pipelines, rainwater pumping stations, hydropower station sediment cleaning.
6、Construction (bridge construction wells, etc.) row of sediment, mud.
7、Steel plant blast furnace slag, slag, pumping iron oxide delivery.
8、Concentrator tailings, slag, pulp transport.
9、Coal cinder, slime, coal slurry cleaning.
10、Power plant fly ash, slime, coal slurry transportation.
11、Learn a variety of King Kong sand, quartz sand, steel slag solid particles.
12、Tile factory pumping powder.
13、Coastal areas.
14、Delivery slurry material which containing various impurities .
15、Transport other medium containing larger solid particles.
