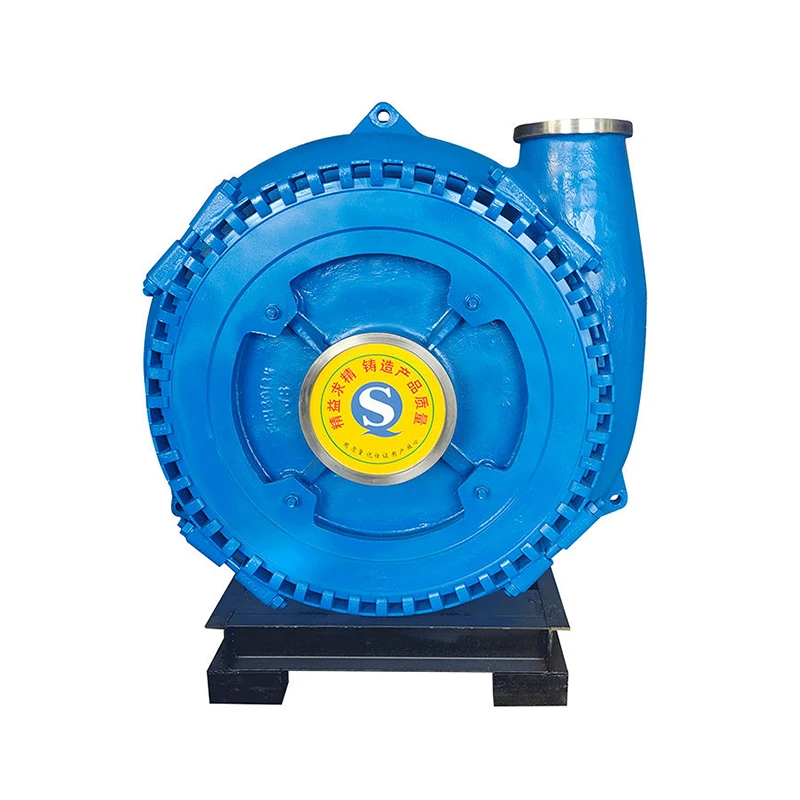

Pump Sand And Gravel
Product Description
The gravel pump is suitable for transporting debris from dredging ships, dredging rivers, mining, and metal smelting.
The outlet direction of the gravel pump can be adjusted as needed
The overcurrent components are made of hard nickel and high chromium wear-resistant alloys
Mainly used for conveying highly abrasive slurries containing larger particles
Product features
Single stage, single pump casing structure. The advantages of gravel pump products are high efficiency, wear resistance, wide flow channel, good cavitation performance, stable performance, and easy disassembly. The lining and impeller materials are made of wear-resistant metal, and the sand pump outlet direction can rotate at any angle, with belt transmission.
Specific information as follows
Discharge Diameters 4” to 16” (100mm to 400mm)
Heads Range 230ft (70m)
Flow rate 8,000gpm (4,100m3/h)
Casing Pressure Tolerance 300psig (2,020kPa)
Model meaning
6/4D-YG
6/4:Inlet/Outlet Diameter is 6/4 inch
YG: YG series Sand Gravel Pump
D: Frame type
Liners material: A05 A07 A33 A49 etc Driven Type: CR ZV CV Seal type:gland seal, expeller seal, machanical seal Discharge direction can be positioned at any intervals in 360 degrees
Moreover, the gravel pump is designed for effortless operation and maintenance. Its reliable performance ensures seamless operation, while its uncomplicated disassembly feature facilitates quick and stress-free maintenance. As a result, your team can allocate less time to maintenance and more time to productive tasks, maximizing operational efficiency.
The wear-resistant metal lining and impeller of our gravel pump are carefully selected to withstand the abrasive nature of the materials being transported. This guarantees an extended service life and reduced downtime. Additionally, the pump's belt transmission enables the outlet direction to rotate at any angle, allowing for further customization and adaptability to cater to specific project needs.
For details, please consult our company’s account manager, so that you can choose products for you more professionally.
