chemical pump suppliers Performance Analysis

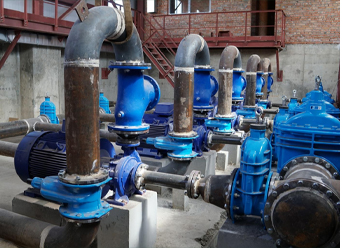

chemical pump suppliers

Introduction

Chemical pumps represent a critical component in numerous industrial processes, facilitating the safe and efficient transfer of corrosive and hazardous fluids. These pumps differ significantly from standard centrifugal pumps due to the specialized materials of construction and designs required to handle aggressive chemical environments. Their technical position within the industry chain is post-chemical synthesis/processing and precedes fluid application – representing a vital link in maintaining process integrity and safety. Core performance characteristics revolve around leak-free operation, material compatibility, flow rate accuracy, and resistance to degradation from prolonged exposure to the pumped media. Selecting the appropriate chemical pump directly impacts process efficiency, operational safety, and long-term cost-effectiveness. Industry challenges center around mitigating corrosion, ensuring seal reliability, adhering to stringent regulatory requirements, and minimizing total cost of ownership. The demand for chemical pumps is heavily influenced by growth in the chemical, pharmaceutical, water treatment, and oil & gas sectors.

Material Science & Manufacturing

The performance and longevity of a chemical pump are inextricably linked to the material science employed in its construction. Common wetted parts materials include Polypropylene (PP), Polyvinylidene Fluoride (PVDF), Polytetrafluoroethylene (PTFE), Alloy 20, Hastelloy C-276, and 316 Stainless Steel. PP offers excellent resistance to acids and bases at moderate temperatures. PVDF excels in broader chemical resistance, particularly against oxidants and solvents, and can withstand higher temperatures. PTFE, while incredibly chemically inert, suffers from creep and requires support materials. Alloy 20 and Hastelloy C-276 are nickel-based alloys providing superior resistance to highly corrosive environments, including strong acids and oxidizing agents. 316 Stainless Steel, while cost-effective, is susceptible to chloride-induced pitting corrosion. Manufacturing processes vary depending on the component. Pump housings are often produced via injection molding (for plastics) or casting (for metals). Impellers are commonly manufactured using CNC machining for metallic components and injection molding for plastic impellers. Shafts are typically machined from high-strength alloys and undergo rigorous quality control. Seals are critically important and are frequently manufactured from PTFE or other chemically resistant elastomers. Parameter control during manufacturing focuses on dimensional accuracy, surface finish (to minimize friction and corrosion initiation sites), and material homogeneity. Welding procedures for metallic components require strict adherence to ASME Section IX standards to ensure weld integrity and prevent corrosion in weld zones. Post-weld heat treatment is often employed to relieve residual stresses.

chemical pump suppliers

Performance & Engineering

Chemical pump performance is governed by several key engineering principles. Hydrostatic pressure, flow velocity, and shear stress all play a role in determining pump behavior and potential failure mechanisms. Force analysis considers the forces exerted by the pumped fluid on the impeller and pump housing, as well as the stresses induced by internal pressure. Environmental resistance is paramount; pumps must withstand temperature fluctuations, humidity, and exposure to corrosive atmospheres. Compliance requirements are extensive, including adherence to OSHA regulations (USA), ATEX directives (Europe) for potentially explosive environments, and SEVESO III regulations (Europe) for major accident hazard sites. Functional implementation varies based on pump type – centrifugal, diaphragm, peristaltic, and gear pumps each possess unique characteristics. Centrifugal pumps offer high flow rates but are sensitive to changes in fluid viscosity. Diaphragm pumps provide self-priming capabilities and are suitable for abrasive fluids. Peristaltic pumps offer gentle pumping action ideal for shear-sensitive fluids. Gear pumps deliver precise flow control but are less tolerant of solids. Cavitation, a common issue in centrifugal pumps, must be avoided by maintaining sufficient Net Positive Suction Head Available (NPSHa). Pump curves, outlining performance characteristics (head vs. flow rate) are critical for proper pump selection. Mechanical seals are often double-sealed with a barrier fluid to prevent leakage of hazardous chemicals.

Technical Specifications

Parameter Centrifugal Pump (PP) Diaphragm Pump (PVDF) Gear Pump (Hastelloy C-276) Peristaltic Pump (EPDM)
Maximum Flow Rate (GPM) 250 80 50 10
Maximum Head (ft) 150 100 200 50
Maximum Temperature (°C) 80 100 180 60
Viscosity Range (cP) 1-100 1-500 1-200 1-20
Solids Handling (mm) 0 3 0 6
Seal Type Mechanical Seal (PTFE/Ceramic) PTFE Diaphragm Mechanical Seal (Hastelloy C-276) Tubing Wall

Failure Mode & Maintenance

Chemical pumps are susceptible to several failure modes. Corrosion is a primary concern, leading to material degradation and eventual leakage. Fatigue cracking can occur in pump housings and impellers due to cyclic loading. Seal failure is common, resulting in chemical leakage and potential environmental hazards. Cavitation, as mentioned previously, erodes impeller surfaces. Diaphragm rupture in diaphragm pumps halts operation. Gear pump failure can result from abrasive wear or seizure due to improper lubrication or solids ingestion. Failure analysis should encompass visual inspection, non-destructive testing (NDT) such as ultrasonic testing and dye penetrant inspection, and potentially metallurgical analysis. Preventative maintenance is crucial. This includes regular seal inspections and replacements, lubrication of bearings, monitoring of vibration levels, and periodic performance testing. Filter installation upstream of the pump protects against solids damage. Proper grounding prevents static electricity buildup in flammable environments. Regular flushing of the pump housing removes accumulated deposits. Maintaining a log of pump operating parameters (pressure, flow rate, temperature) aids in identifying potential problems early on. Scheduled overhauls, based on operating hours and fluid characteristics, ensure long-term reliability.

Industry FAQ

Q: What is the impact of fluid temperature on pump seal selection?

A: Elevated fluid temperatures can significantly reduce the lifespan of elastomeric seals. Higher temperatures accelerate degradation and reduce the sealing force. Selecting a seal material with a higher temperature rating, such as PTFE, or employing a double mechanical seal with a cooling barrier fluid, is often necessary.

Q: How do I prevent corrosion in a pump handling concentrated sulfuric acid?

A: Sulfuric acid requires specialized materials. Hastelloy C-276 or Alloy 20 are generally recommended for wetted parts. Avoid using stainless steel, as it's susceptible to corrosion. Ensure proper ventilation to prevent acid fumes from condensing on pump components. Regular inspection for signs of corrosion is vital.

Q: What is NPSHa and why is it important for centrifugal pumps?

A: NPSHa (Net Positive Suction Head Available) is the absolute pressure at the pump suction, minus the vapor pressure of the liquid. It must exceed the NPSHr (Net Positive Suction Head Required) specified by the pump manufacturer to prevent cavitation. Insufficient NPSHa leads to vapor bubble formation and impeller damage.

Q: What are the key considerations when selecting a pump for shear-sensitive fluids?

A: Shear-sensitive fluids (e.g., polymers, biological solutions) can be damaged by high shear rates. Peristaltic pumps are ideal as they minimize shear. Diaphragm pumps are also a good option. Avoid centrifugal and gear pumps, which generate higher shear forces.

Q: How often should mechanical seals be inspected and replaced in a chemical pump application?

A: Inspection frequency depends on the fluid being pumped and operating conditions. As a general guideline, inspect seals every 6-12 months. Replace seals proactively if any signs of wear, leakage, or damage are observed. Keeping a detailed maintenance log aids in establishing a tailored replacement schedule.

Conclusion

The selection, operation, and maintenance of chemical pumps demand a thorough understanding of material science, engineering principles, and industry regulations. Failure to address these factors can lead to costly downtime, environmental hazards, and safety concerns. Prioritizing material compatibility, employing appropriate preventative maintenance strategies, and adhering to established safety standards are paramount for ensuring long-term pump reliability and process integrity.

Looking forward, advancements in pump technology will likely focus on the development of more corrosion-resistant materials, improved seal designs, and intelligent monitoring systems capable of predicting pump failures before they occur. The integration of digital technologies, such as remote monitoring and data analytics, will play an increasingly important role in optimizing pump performance and reducing total cost of ownership. Continued adherence to evolving regulatory standards will also be crucial for maintaining compliance and ensuring safe operation within the chemical processing industry.

Standards & Regulations: ASTM D2240 (Standard Test Method for Polymers – Determining Glass Transition Temperature), ISO 2858 (Metallic Valves and Flanges – Dimensions and Tolerances), GB/T 6000.1 (Metallic Valves – General Requirements), EN 1092-1 (Flanges and their Joints – Specifications for steel flanges), ASME B73.1 (Power and Process Gas Compressors), ATEX Directive 2014/34/EU (Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres).
