Double Suction Pump Diagram Performance Analysis

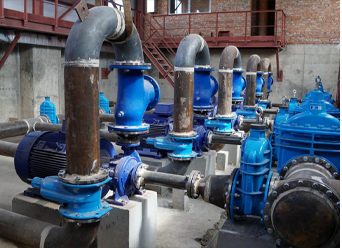

double suction pump diagram

Introduction

Double suction pumps are a class of centrifugal pumps designed to draw fluid in from both sides of the impeller, significantly increasing flow capacity compared to single-suction designs. They occupy a critical position in industrial fluid handling, particularly in applications requiring high volumes at moderate heads, such as water supply, irrigation, power generation, and industrial process cooling. The core performance characteristic lies in their ability to mitigate axial thrust, a common issue in single-suction pumps, leading to improved stability and longevity. A detailed understanding of their construction, material properties, and operational parameters is crucial for engineers and procurement managers tasked with selecting and maintaining these critical components. This guide provides an in-depth exploration of double suction pumps, covering material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards.

Material Science & Manufacturing

The construction of a double suction pump necessitates a careful selection of materials to withstand corrosive fluids, high rotational speeds, and substantial hydraulic pressures. Common materials include cast iron (ASTM A48 Class 30), ductile iron (ASTM A536 Grade 65-45-12), stainless steel (304, 316 – ASTM A743), and specialized alloys like duplex stainless steel for particularly aggressive environments. The impeller, a critical component, is typically manufactured using centrifugal casting to achieve optimal grain structure and mechanical strength. Casing fabrication often involves sand casting or investment casting, followed by meticulous machining to ensure precise tolerances. Shafts are typically forged from high-strength carbon steel (AISI 1045) and hardened to resist torsional stress and wear. Sealing elements, essential for preventing leakage, utilize materials like Viton (fluoroelastomer) or PTFE (polytetrafluoroethylene) based on fluid compatibility. The manufacturing process involves several key parameter controls: impeller balancing (ISO 1940-1) to minimize vibration, casing dimensional accuracy (controlled within +/- 0.1mm), shaft runout verification (less than 0.02mm), and non-destructive testing (NDT) – including radiographic inspection (RT) and ultrasonic testing (UT) – to identify internal flaws. Proper heat treatment of ferrous components is paramount to achieving desired hardness and ductility. Welding, where employed (e.g., casing fabrication), must adhere to ASME Section IX standards to guarantee structural integrity.

double suction pump diagram

Performance & Engineering

Performance analysis of a double suction pump centers around hydraulic efficiency, net positive suction head required (NPSHr), and susceptibility to cavitation. The pump’s power requirement is dictated by the fluid's density, flow rate, and differential head. Force analysis reveals that the double-suction configuration inherently balances axial thrust generated by the impeller, minimizing bearing load and extending pump life. Environmental resistance is a crucial consideration; pumps operating in corrosive atmospheres require protective coatings (epoxy, polyurethane) conforming to SSPC standards. Compliance requirements vary by region and application. For potable water applications, pumps must meet NSF/ANSI 61 standards regarding lead content and material compatibility. In hazardous locations, compliance with ATEX or IECEx directives is mandatory to prevent ignition of flammable substances. Functional implementation necessitates careful system design to minimize head losses in the suction and discharge piping. Proper impeller trim (diameter reduction) is used to adjust pump performance to specific system requirements, avoiding operating points beyond the Best Efficiency Point (BEP). Pump curves (head-flow performance curves) are essential tools for predicting pump behavior under varying conditions, enabling optimal system configuration. Variable Frequency Drives (VFDs) are increasingly utilized to modulate pump speed and optimize energy consumption.

Technical Specifications

Parameter Unit Typical Range (Cast Iron) Typical Range (Stainless Steel)
Flow Rate m³/h 50 - 1500 20 - 800
Head m 10 - 80 5 - 60
Pump Speed RPM 750 - 3600 750 - 3600
Impeller Diameter mm 200 - 600 150 - 400
Suction Pipe Diameter mm 80 - 300 50 - 200
Discharge Pipe Diameter mm 80 - 400 50 - 250

Failure Mode & Maintenance

Common failure modes in double suction pumps include impeller cavitation (leading to pitting and erosion), bearing failure (due to improper lubrication or overload), seal leakage (resulting from worn seals or misalignment), and casing cracking (caused by fatigue or thermal stress). Cavitation, often induced by insufficient NPSH, manifests as a distinctive noise and reduced pump performance. Bearing failure typically presents as increased vibration and temperature. Seal leakage requires immediate attention to prevent fluid loss and potential contamination. Casing cracks necessitate immediate shutdown and repair. Preventative maintenance is crucial. Regular vibration analysis (ISO 10816) can detect early signs of bearing wear or impeller imbalance. Lubrication schedules must be strictly adhered to, utilizing appropriate greases or oils. Seal replacement should be performed proactively based on operational hours. Periodic inspection for casing corrosion or erosion is recommended. Hydraulic performance testing (measuring head and flow) provides a baseline for identifying performance degradation. In the event of a failure, root cause analysis (RCA) is vital to prevent recurrence. This often involves metallurgical analysis of failed components and a review of operational data. Proper alignment between the pump and motor is critical and should be checked regularly.

Industry FAQ

Q: What is the primary advantage of a double suction pump over a single suction pump?

A: The primary advantage lies in its increased flow capacity for a given impeller diameter and speed. The dual suction configuration also significantly reduces axial thrust, leading to improved bearing life and pump stability. This makes them ideal for applications demanding high volume transfer with moderate head requirements.

Q: How critical is NPSH in double suction pump operation?

A: NPSH (Net Positive Suction Head) is extremely critical. Insufficient NPSH will lead to cavitation, which damages the impeller and reduces pump efficiency. Accurate NPSHr (Net Positive Suction Head Required) calculation and ensuring the NPSHa (Net Positive Suction Head Available) in the system exceeds NPSHr by a safe margin are essential for reliable operation.

Q: What materials are best suited for handling corrosive fluids?

A: For highly corrosive fluids, stainless steel alloys (316, duplex stainless steel) are generally recommended. Specialized alloys like Hastelloy or titanium may be necessary for extremely aggressive environments. Material selection must be based on a thorough understanding of the fluid's chemical composition and operating temperature.

Q: How often should pump seals be replaced?

A: Seal replacement frequency depends on the application and fluid being pumped. As a general guideline, seals should be inspected every 6-12 months and replaced proactively every 1-2 years, or sooner if leakage is detected. Monitoring seal chamber pressure can also provide insights into seal health.

Q: What are the implications of pump vibration, and how is it monitored?

A: Excessive pump vibration indicates a mechanical problem, such as bearing wear, impeller imbalance, or misalignment. It can lead to premature failure and system downtime. Vibration analysis, performed using accelerometers and data analysis software, can identify the source of the vibration and guide maintenance efforts. ISO 10816 provides standards for vibration severity assessment.

Conclusion

Double suction pumps represent a robust and efficient solution for high-volume fluid transfer applications. Understanding their material science, manufacturing nuances, and operational parameters is paramount for ensuring reliable performance and minimizing lifecycle costs. Careful consideration of NPSH requirements, material compatibility, and preventative maintenance practices are essential for maximizing pump longevity and avoiding costly downtime.

The continued development of advanced materials, improved impeller designs, and intelligent monitoring systems will further enhance the performance and reliability of double suction pumps. Integration with digital technologies, such as predictive maintenance algorithms and remote monitoring platforms, will enable proactive management and optimization of pump operation, leading to increased efficiency and reduced environmental impact.

Standards & Regulations: ASTM A48, ASTM A536, ASTM A743, ISO 1940-1, ISO 10816, ASME Section IX, NSF/ANSI 61, ATEX, IECEx, SSPC.
